Description

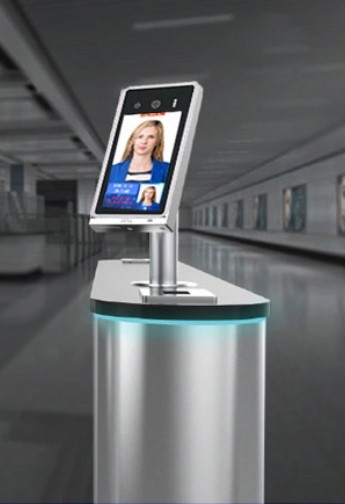

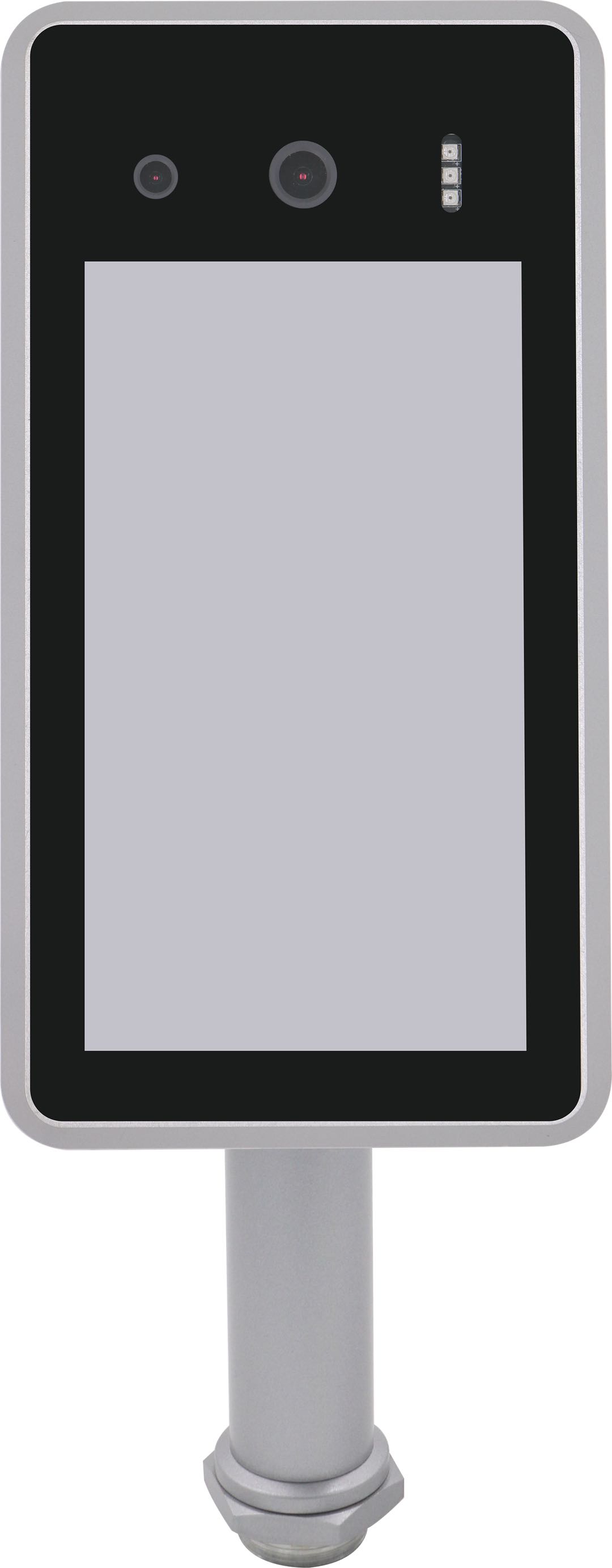

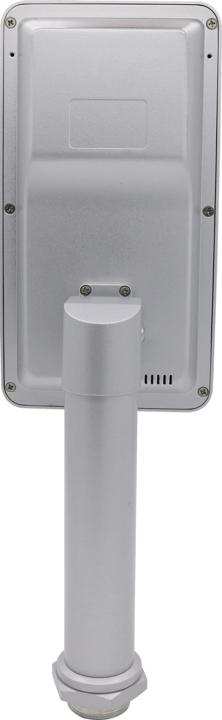

Temperature Measurement Panel, Facial and Mask Recognition CDPr100 (Configurable Access Control).

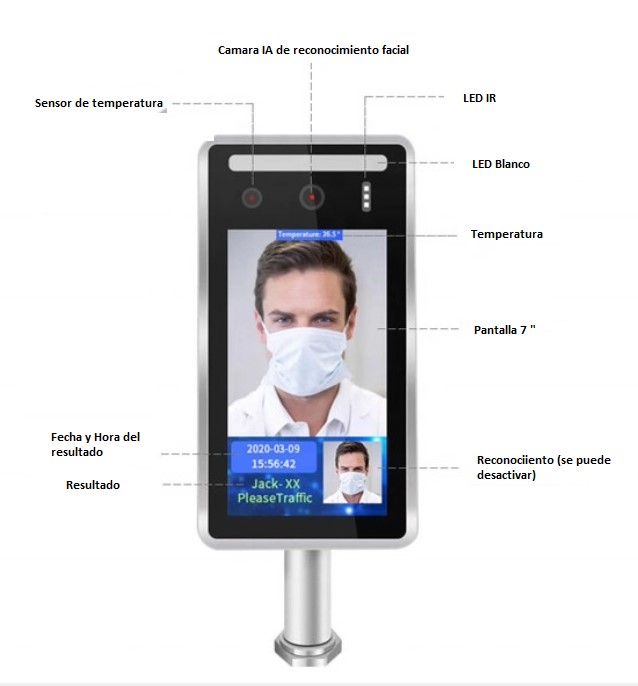

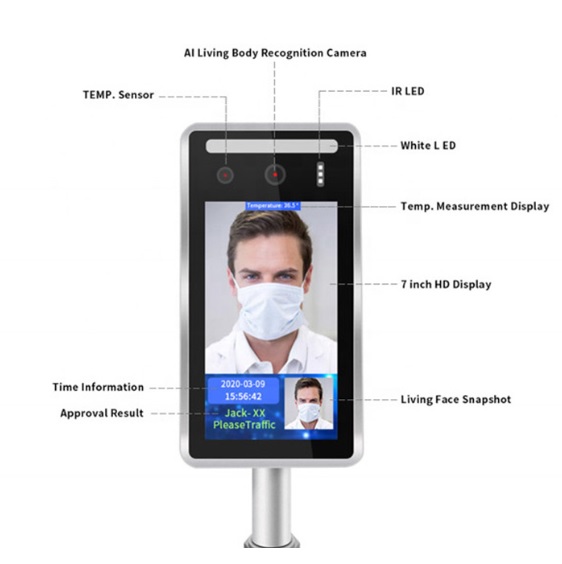

CDPR100 Access Control (Al Face Recognition and Body Temperature Measurement) is a complete epidemic prevention solution that integrates AI face recognition, body temperature measurement, mask recognition, and access control. On-site efficient temperature detection, person identification and human movement management, effectively reducing pressure on epidemic prevention and control, as well as human resources costs.
BODY TEMPERATURE MONITORING

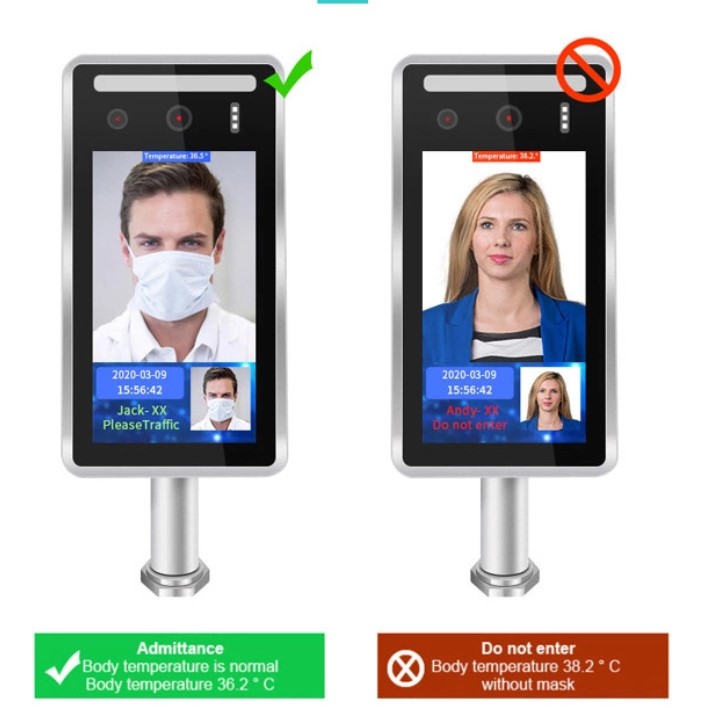

Set the body temperature threshold, through the associated access control, do not open the door and press the alarm when someone exceeds the threshold.
SMART RECOGNITION (If desired, configurable function)
Compared to the facial photo database, recognize visitors who are on the Whitelist, blacklist, or a stranger or guest.
VOICE WARNINGS
The device itself has a voice transmission capacity and a voice reminder according to a predetermined result.

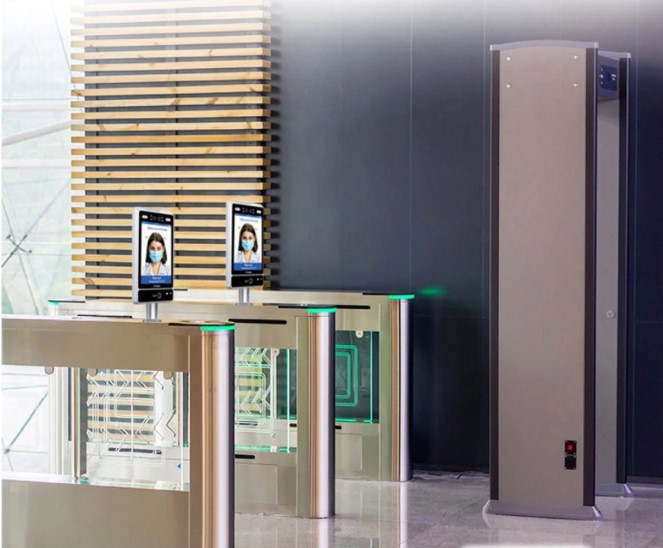

You can connect external equipment for example to operate on a lathe, electric lock, voice transmission, display equipment and alarm equipment.
 |
 |
 |
 |
| High-precision thermal with infrared module | Automatic recognition of mask use | Visual and voice alarm for normal body temperature and mask use. | Binocular recognition anti-counter felt function, anti-cheat photos, videos, etc. |
 |
 |
 |
|
| Precision facial recognition > 99%. Recognition speed <200 ms | Low-light, infrared and RGB recognition, worry-free recognition | Face, temperature detection, optional IC card, ID card | Working environment – 10 ° C-60 ° C |

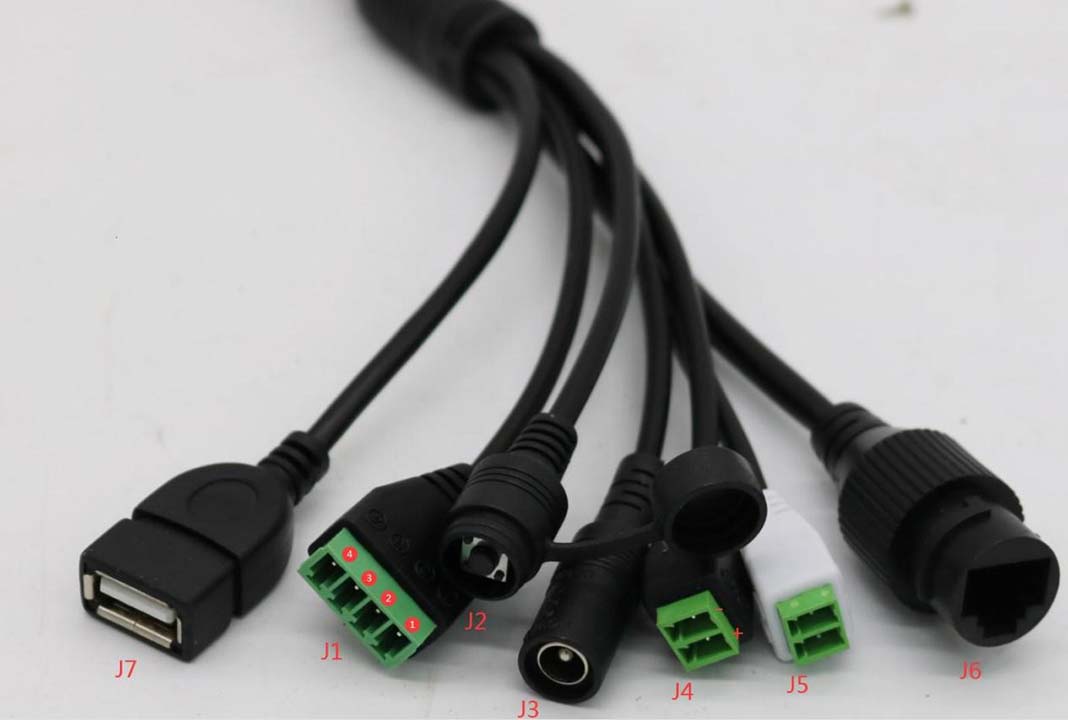

Connections
|
J1 Access control （exit） |
1 and 2 waiting for open contact, if the identification is correct it closes. |
| 3 and 4 waiting for closed contact, if identification is correct it opens. | |
| Restart key J2 | |
| Power connectorJ3 | DC 12V |
| Alarm output J4 | Output alarm GND + ALMO 1, without action output 3.3V,with action output 0V |
| Connector J5 Wiegand | -WGNI0 + WGNI1 (input) |
| J6 RJ45 | 100 Mb |
| J7 USB | 5V DM DP GND |
Technical characteristics
| Model | CDPR100 | |
| Product | Main board model | RS-H658AI-A0-A |
| Sensor model | RS-H658S-A0-B | |
| System | Chip | Hi3516CV500 |
| Operating system | Incorporated operating system LINUX | |
| Video | Image sensor | 1 / 2.8 IMX327 |
| Compression | H.265 | |
| System | PAL 50 HZ / NTSC 60 HZ | |
| Resolution | 1920 * 1080 | |
| Size LCD | Size LCD 7” screen | |
| Video Bit stream | 128 kbps-12288 kbps (default variable code rate） | |
| SNR | SNR ≥69dB | |
| Minimum light | Day mode 1Lux, night mode 0.01Lux | |
| Mode D / N | Automatic (passive mode) / day mode / night mode / automatic mode / timing | |
| (AWB) / (BLC) / (AGC) / WDR | AUTO | |
| (AES) | AUTO / 1/50（1/60）-1 / 100,000seg | |
| Video output | Easytool / EasyVMS / APP / 7” screen | |
| Motion sensor | Supported | |
| Screen capture | Supported | |
| Function | Body temperature test | Support (0.3-1.2M distance,error ± 0.3℃) |
| Mask recognition | Supported | |
| Access control assistance | Supported | |
| Audio | Coding standards | G.711U |
| Audio input | MIC passive / speaker | |
| Audio output | External speaker 8Ω / MAX 1.5W | |
| Recording | Recording mode | Manual recording, alarm recording, timed recording |
| Recording storage | TF Card (pcb completely functional) / PC / NVR | |
| Alarms | Alarm input/output | Supports weigen protocol |
| Alarm trigger | Motion detection alarm, speaker alarm, alarm recording, image capture, mailing | |
| Network | Wi-Fi module / protocol | M8188 (eternal antenna 2.4G) / supports 802.11 b / g / n (pcb completely functional) |
| Network protocol | HTTP, TCP / IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPOE, DDNS, FTP, IP search (admits IP camera P6S, DVR, NVS and etc.) | |
| Other | TF card storage | Maximum support 128 GB (in common use FAT32 format) pcb of complete function |
| Work voltage | DC-12V standard (wide voltage 10-16V) | |
| Work current | 160mA ±10mA | |
| Work environment | -20℃ — +65℃ | |

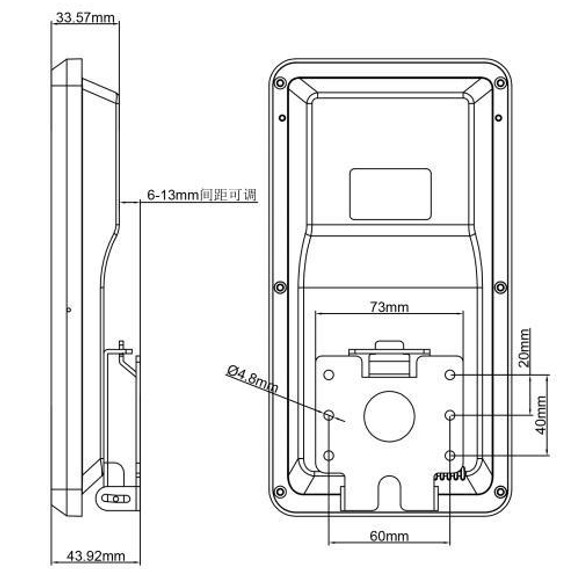

| Size | Printed circuit board | 85mm * 60mm |
| Sensor Pcb | 66mm * 27mm | |
