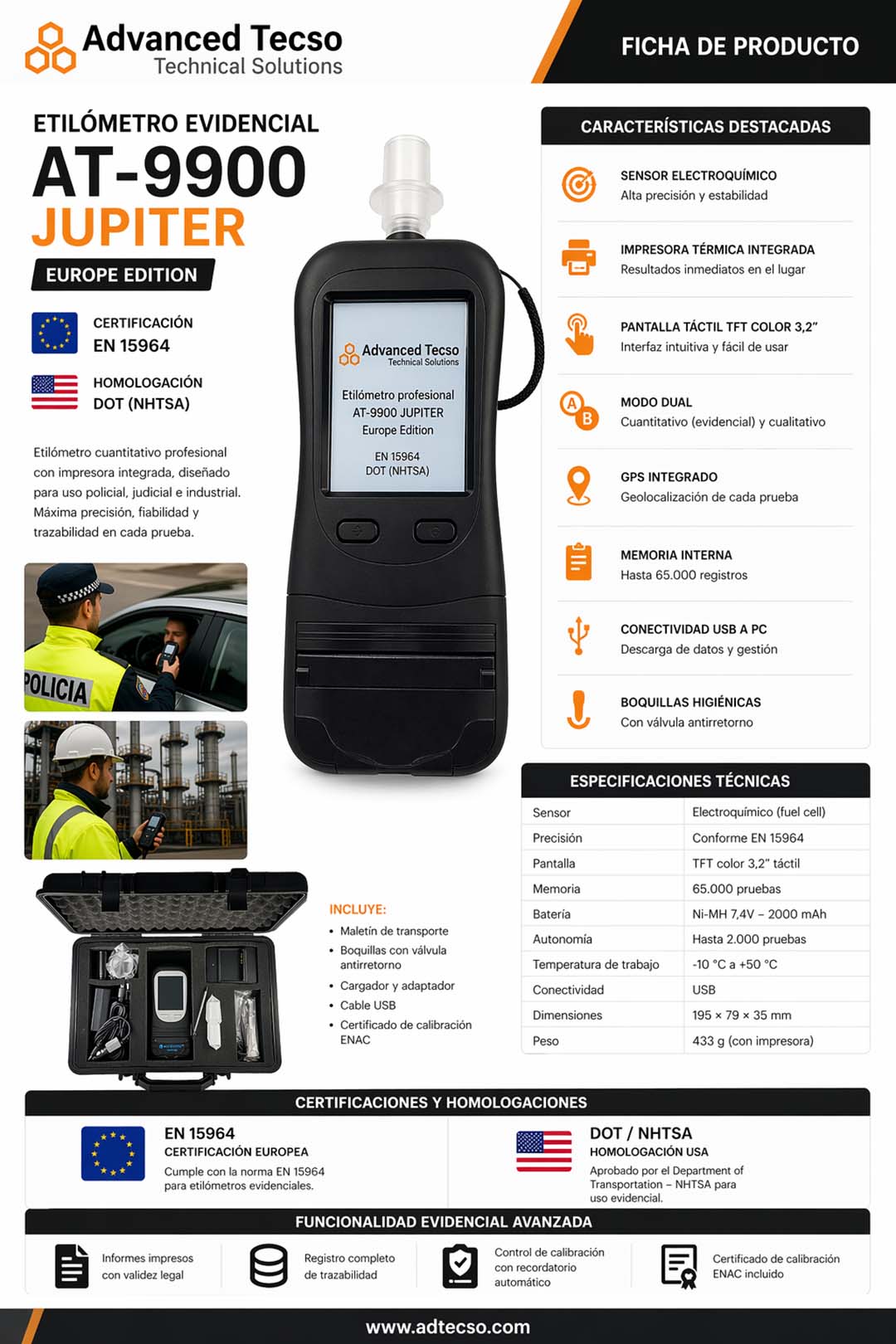

Quantitative Ethylometer AdTecso-Jupiter AT-9900 with Printer: EN15964-OIML R126

Description

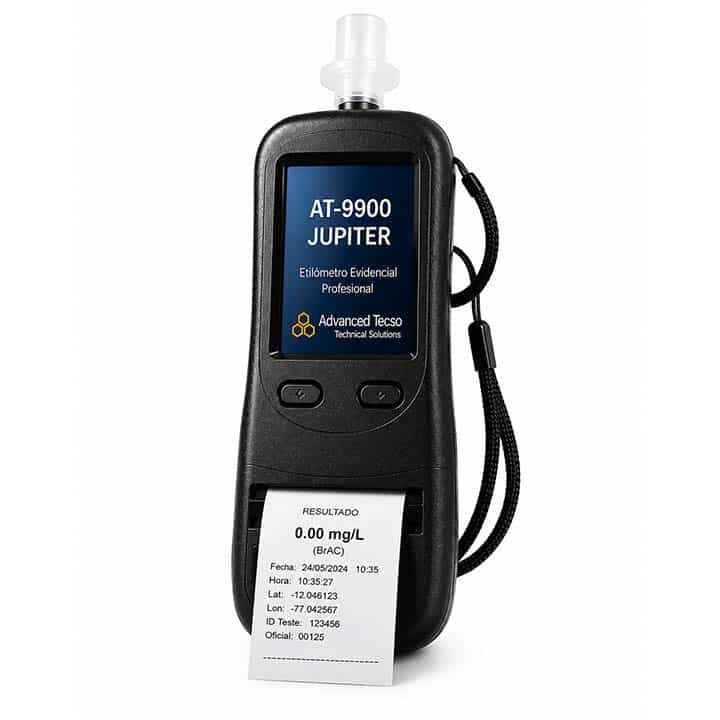

The Quantitative Ethylometer AdTecso-Jupiter AT-9900 with printer offers high reliability and is designed for police use. It incorporates the latest technological advances such as integrated printer head, LCD 3.2″ TFT color touch screen, high-capacity lithium battery, capacity to perform quantitative and qualitative tests with optional data collection with software activation. It has a wide range of European and international certifications with results that confirm its high precision, stability and reliability.

This product has been designed, manufactured and tested in accordance with rigorous international quality standards with respect to the OIML R 126 standard (see metrological report), following the recommendations regarding quantitative ethylometers, and it is also certified by European EN-15964.

 All our ethylometers are supplied with an official calibration certificate with ENAC (https://ilac.org/) traceability, internationally recognized by most metrological institutions…

This product has been designed, manufactured and tested in accordance with rigorous international quality standards, and in particular, with respect to the OIML R 126 standard  on recommendations regarding evidential breathalyzers.

 Key features:

• – Fast-activating electrochemical sensor with accurate and stable long-term results
• – With built-in printer head in the same equipment.
• – Includes GPS module that provides geographic information on test performance
• – Dual modes of use with software activation: quantitative mode with optional data entry, and qualitative mode
• – Internal memory to store 65,000 test records, it allows storing or transferring the results to a PC via a USB cable (supplied with the kit)
• – Adjustable alarm level

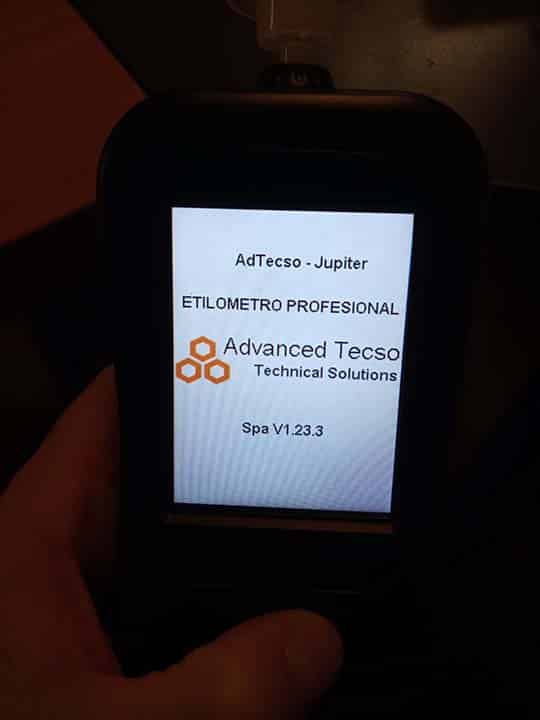

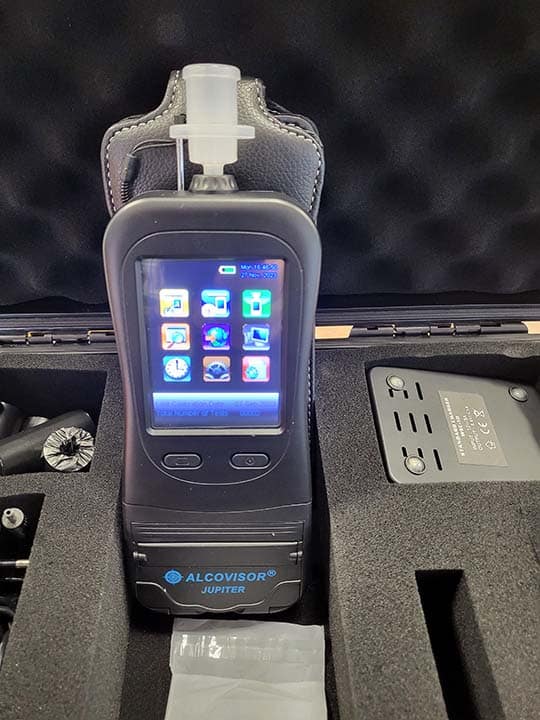

• – Very clear and precise 3.2″ backlit 4-digit touchscreen, with clear and easy-to-read messages
• – USB connection to PC
• – Uses sterile mouthpieces with anti-return system for optimal test hygiene
• – With 7.4V 2000mAh NI-MH rechargeable high-capacity battery with real-time battery status indicator
• Other features include:
  • • Auto shut-off function
    • Verification of the date of the next calibration in 12-month cycles
    • Possibility of usage at the user’s convenience: measurements in passive mode, sampling of air or breath, etc.
    • It uses special blowing mouthpieces that are made of high-density polypropylene and include with an anti-return system that prevents aspiration from the equipment, thus preventing the spread of diseases, infections, etc.
    • Allows recalibration and has an electronic calendar with reminders of the next calibration interval.
• The data collected with the activated data collection mode includes the following fields:
  • • Device Reference.
    • Printed Report No..
    • Date and time.
    • Room temperature.
    • Result.
    • Device status or mode.
    • Data of the test taker.
    • Vehicle registration.
    • Postal address.
    • Signature of the individual tested.
    • Agent ID.
    • This information can be customised for large projects.

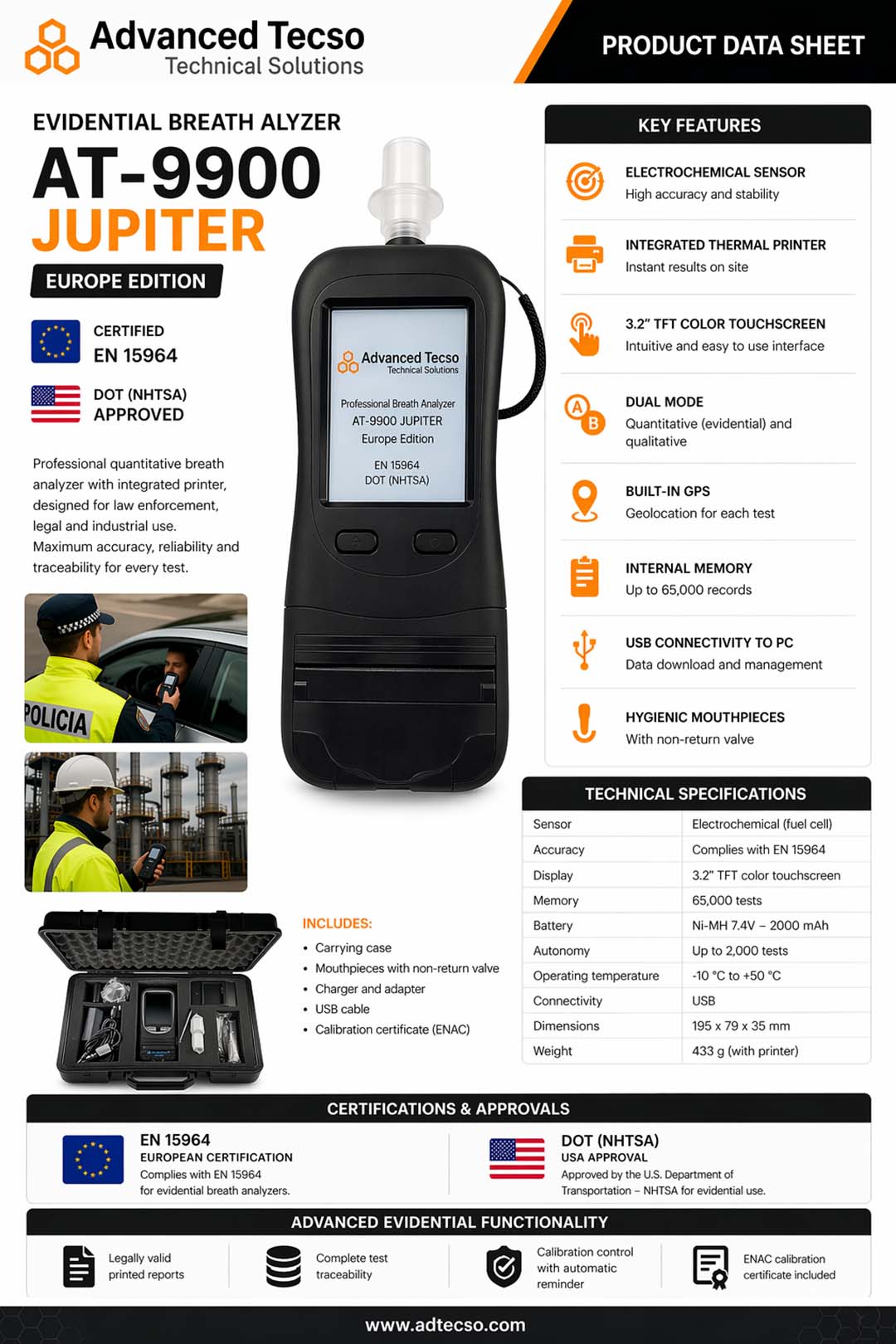

Technical Specifications:

• Sensor: Electrochemical sensor
• Working temperature: -10°C to 50°C
• Storage temperature: -25°C to 70°C
• Size 19.5 cm X 7.90 cm X 3.5 cm (with printer)
• Weight 433 g, includes battery and printer
• Battery life 2000 tests
• 4V 2000mAh NI-MH Rechargeable Battery
• LCD Display Size 3.2″ TFT Color Touch Screen (65,000 Colors)
• Sampling system for automatic or manual collection of lung sample
• Optional Power Supply 12-volt car adapter or 6-volt AC adapter
• BrAC units of measurement: mg/L, g/L, grm%, mg/mL, mg/100ml or other units
• Detection range 0 mg/100mL BAC to 440 mg/100mL BAC
• Accuracy: 0 – 0.10% BAC ±5% // 0.10-0.15% BAC ±8% // >0.15% BAC: ±10%
• Sensitivity drift typically 0.6% of measured value per month
• Calibration interval 12 months
• Cross-sensitivity to anesthetic gases: None
• Memory for 65,000 test records including all information
• Geolocation of GPS tests that provides geographic information. Accuracy: ±5M
• USB connection port for data download to PC
• Built-in thermal printer
• Real-time clock
• Certifications: EN 15964 and CE

 The AdTecso-Jupiter AT-9900 Ethylometer Kit includes:

• • Ethylometer Model: AdTecso-Jupiter AT-9900 with built-in printhead (conventional blowing)
  • Accessories:
  • Hard carrying case: 1
  • Leather case
  • Breathalyzer with printer: 1
  • Battery: 1
  • Power Adapter: 1
  • Car charging cable: 1
  • USB Data Cable: 1
  • Thermal Paper Roll Printing: 2
    • All our ethylometers are supplied with an official calibration certificate with ENAC (https://ilac.org/) traceability, internationally recognized by most metrological institutions..

Certificaciones Europeas: Certificaciones Internacionales:

Note:

Adtecso has its own ethylometer laboratory offering qualified technical and after-sales support, which is essential for the usage of these measuring devices that require periodic maintenance. Certified calibrations, replacement of parts, certificates and especially for sanitary and professional use are clear examples. We have more than 20 years of experience being one of the top businesses in Europe in this field.
