CDPH2008 CO2 Detector CE Certified

Description

The CDPH2008 CO2 Detector CE Certified is a multifunction device used to detect the concentration of carbon dioxide, temperature and humidity in the environment.

It has multiple applications. You can measure the environmental quality in hotels, department stores, offices, meeting rooms, libraries, train or bus stations, airports, pharmacies, living rooms, laboratories, schools, reading rooms, cinemas, hospitals, greenhouses, etc.

Designed to mount on the wall of public or private zones.

The Harvard guide (or the one just published by the CSIC) recommends, for COVID-19 prevention, not to exceed 700 ppm in a room.

* Important: Our CO2 monitors are equipped with Swiss-made NDIR sensors to measure CO2 concentration NDIR manufactured in Switzerland (Non-Dispersive Infrared) WAVE GUIDE TECHNOLOGY WITH ABC (Automatic Background Calibration), which are not affected by variations in temperature and humidity and allow a durability of more than 15 years.

CO2 monitors with CE certification and RoHs approval

Designed to mount on the wall of public or private zones.

What is it for

If a person infected with COVID, or flu, spends hours talking, coughing, or even breathing in an enclosed enclosure, the environment will be filled with infectious aerosols.

The best solution is to ventilate the room!

You have to open the windows, but is it necessary to keep them continuously open? The more open, the better, but this is not a realistic option because the windows cannot remain open all day in winter. So how do we know if the ventilation is adequate?

One way to assess if you’re ventilating well is by using CO₂ detectors.

People emit CO₂ when breathing, so the cumulative amount of this gas indicates the level of ventilation in a room.

The Harvard guide (or the one just published by the CSIC) recommends, for COVID-19 prevention, not to exceed 700 ppm in a room.

The conclusion of the study is that it is essential to have a CO₂ analyzer, to ensure sufficient and acceptable ventilation.

Recent studies show that, for example, in a classroom in a school that has not been well ventilated the level can exceed 2,000 – 4,000 ppm.

https://www.ciencia.gob.es/stfls/MICINN/Ministerio/FICHEROS/guia_para_ventilacion_en_aulas_csic.pdf

This scenario can also occur in a bar, restaurant, office, waiting room or in your own home.

Product features

• High accuracy, high resolution and fast response
• Powered by 220V to 9V adapter
• Several groups of digital LED tubes, three colors and very large, for a correct display.
• Clear and intuitive
• The value of the carbon dioxide concentration alarm, for both the upper and lower limits, can be set by the user.
• Alarm function. With light and sound at two levels. The concentration for the alarm can be preset.
• High-quality, European-made carbon dioxide sensor.
• The sensor features a linear output with a fast response speed.
• Carbon dioxide concentration, temperature and humidity are displayed at the same time to detect air quality at all times.
• Stable NDIR sensor for CO₂ concentration
• NDIR (Non-Dispersive Infrared) Wave Guidance Technology with ABC (Automatic Background Calibration)

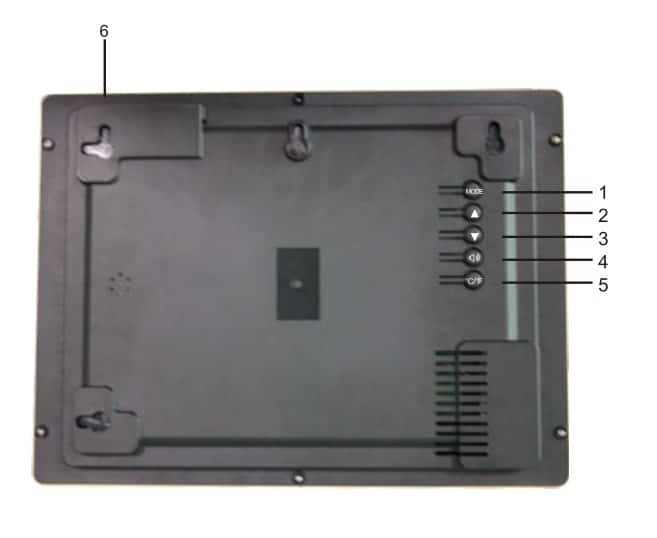

 Panel and key descriptions



Red. Deficient: 200-9999 PPM

Yellow. Good: 600-1100 PPM

Green. Excellent: 0-500 PPM







1	MODO	Sets the carbon dioxide concentration alarm value
2		Increases the alarm value
3		Decreases the alarm value
4		Sound on or off
5		Unit conversion
6		DC power interface

Technical parameters

• Measurement range:
  • C0₂ Concentration: 0-9999PPM
  • Temperature: –10°C-100°C
  • Humidity: 0-99.9% of relative humidity
• Measurement accuracy:
  • CO₂ concentration:     ± 7OPPM ± 3% reading
  • Temperature: ± 0.6°C (Max. ± 1.5°C)
  • Humidity: ± 3%
• Resolution:
  • Concentration de CO₂: 1 PPM
  • Temperature: 0. 1 ° C
  • Humidity: 0. 1% of relative humidity
• Repetition capacity: <= ± 0.5%
• Response time: 10 seconds
• Working condition: 0°C – 50°C, 0% – 90% no condensation
• Storage condition: -30°C – -70°C, 0% – 90% no condensation
• Power : AC 220V converted to DC 9V 2A
• Maximum output: 9V * 350mA
• Dimensions: 388 * 288 * 43 mm
• Weight: 2420 g
