Description

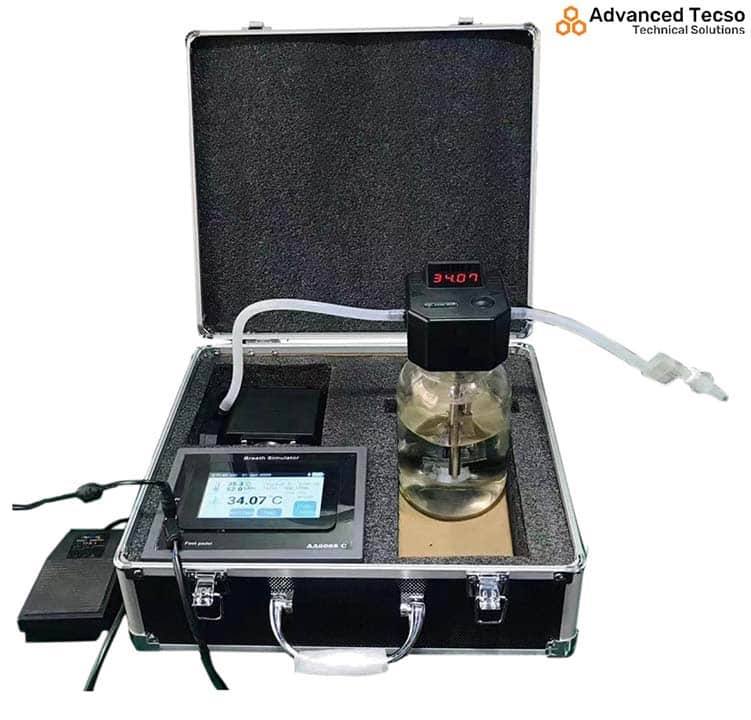

AT-2068c Portable Wet Steam Alcoholic Breath Simulator Kit with LCD Temperature Control Panel.
The Adtecso AT-2068c  wet steam alcohol breath simulator kit is a state-of-the-art instrument, with electronically controlled temperature, in order to provide an accurate calibration standard for the testing or calibration and verification of breathalyzers and ethylometers. It has a powerful processor with OLED screen to independently control and monitor the temperature of the solution. The temperature of the hydroalcoholic solution placed in the simulator is maintained at 34°C ±.05°C. The new LCD graphic display has a temperature resolution of .01º
This kit includes a complete portable case with all the necessary accessories, including the air pump.
Performance:
- Temperature Stability: More than ±.05°C
- Warm-up time, solution and headroom: less than 10 minutes at 20°C
- Test Recovery Time: Less than 5 seconds
- Solution Level: 500ml
- Calibration stability
This complete Portable Wet GAS-Vapor Breathalyzer/Ethylometer Calibration and Verification Kit will allow you to perform complete maintenance of your equipment and provide your customers with regular verification and calibration services. With this portable KIT you can carry out demonstrations anywhere effectively and simply, perform verifications and calibrations of vending or public use breathalyzers, etc.
This compact Calibration Kit for breathalyzers consists of several elements: the exhaust air pump, an internal thermostat to keep the alcohol solution at a constant temperature of between 340C simulating the human body, liquid recirculation elements, gas pressure regulator key, and other accessories.
Technical Specifications:
- Input voltage: 24 Vdc.
- Maximum power of 1.5 A.
- Display: LCD type with LED indicators.
- Operating temperature: 10~35°C
- Blowing pressure: 14-22 l/min, adjustable.
- Liquid/solution temperature: 34-36ºC.
- Accuracy: +/- 0.001 mg/L.
- Input power: AC 100 V – 240 V 47 Hz~63 Hz Efficiency> 84%.
- Output voltage: 24Vdc +/-5%.
- Output current: 1.4 A.
- Dimensions: 101 X 48X34 mm.
- Weight of the set: 3.7 kilos
The kit includes:
- Air-conducting pipette: 2 units (0.1 m and 0.16m).
- Thermostat with electronic-digital temperature control
- Complete head: Motor, mixer, resistor and thermostat
- 1 Glass bottle with adjustment and closure valve.
- 1 Power adapter.
- Carrying case
- Air pressure dispenser
- Filter-mouthpieces with dual-channel back-up system
